The Beam™ 4 Person Spa Pool

Seating

4 Adults

Dimensions

203 x 203 x 84 cm

The Beam™ 4 Person Spa Pool | HotSpring Spas

Capacity

1,175 litres

Jets

19

SMALL STATURE. BIG POSSIBILITIES.

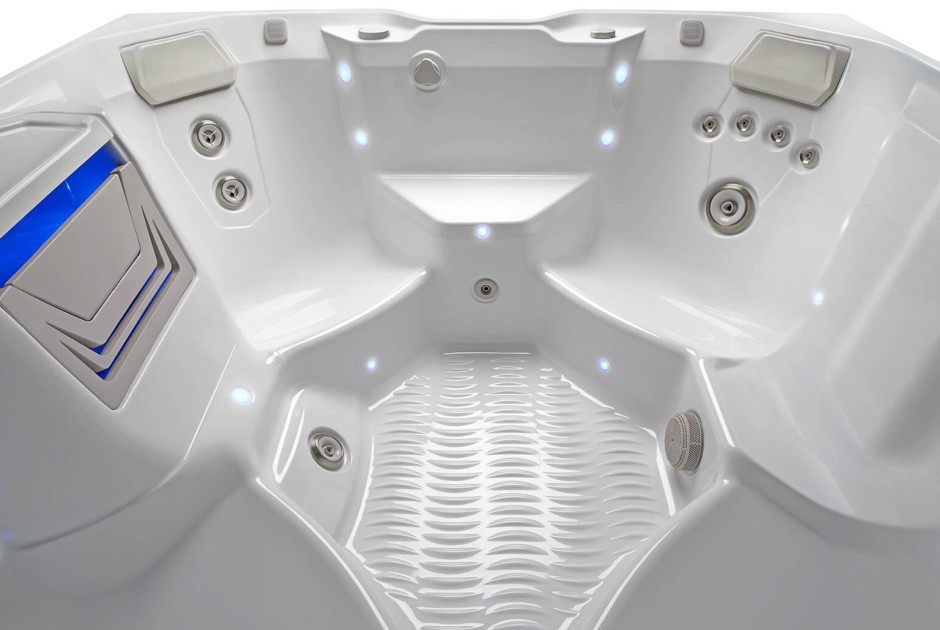

Ideal for tighter spaces, the Beam has a smaller footprint but still provides spacious seating for four people. Each corner seat features a different hydrotherapy option and the large footwell is an added bonus in this spa’s roomy interior.

Energy
Efficiency

Asset 8

FiberCor™
Insulation

Asset 9

Freshwater™ Salt
System Compatible

Asset 10

SilentFlo™
Circulation

Asset 16

High
Performance

Asset 19

Hydromassage
spa seating

Request Price

Want to find out more?
Our friendly staff will be in touch with you to you on your journey.

Request Price
New Zealand’s most  established spa brand | HotSpring Spas
New Zealand’s most established spa brand
Only brand backed by independent laboratory testing | HotSpring Spas
Only brand backed by independent laboratory testing
Peace of mind guaranteed | HotSpring Spas
Peace of mind guaranteed

Make it your own

Cabinet Cabinet / Shell Combo

{{ this.active_cabinet.label }}

{{ cabinet_option.label }}
Shell

{{ this.active_shell.label }}

{{ shell_option.label }}

The Lowest Running Costs, Independently Tested and Proven

The cost of running a spa pool can be significant unless you choose Hot Spring. We offer New Zealand’s most energy-efficient spa pools, with running costs as little as $1 a day. This is a luxurious soak that won’t cost the earth.

How can such luxury come so cheap? Our insulation is carefully designed for maximum heat retention. Our covers are fully insulated and precisely engineered to form a perfect seal around the lip of your spa.

Then there’s our suite of technological innovations, from heat induction jets that recycle the warmth generated by the internal machinery to our SilentFlo 5000 circulation system that keeps your water moving while using the same amount of power as a 40-watt light bulb.

Try our energy calculator now ›

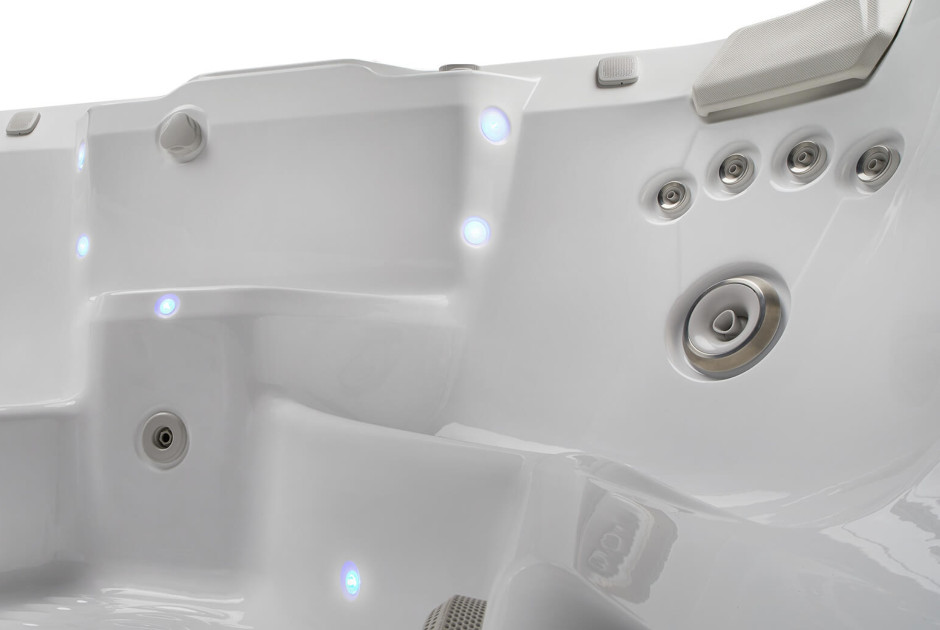

Beam Jet System

The Beam Jet System offers an incredible 19 jets that relieve-tension in targeted areas including your back, neck, shoulders and calves.

{{ getDisplay(point.value) }}
Beam | HotSpring Spas
11
Directional Precision Jets | HotSpring Spas
Directional Precision Jet

These jets soothe your back, neck and calves with adjustable nozzles for a customisable massage right where you need it.

14
Standard Single Rotary Jet | HotSpring Spas
Standard Single Rotary Jet

Enjoy a unique massage experience with these jets that create a singular, strong, rotary water flow.

16
Standard Directional Jet | HotSpring Spas
Standard Directional Jet

These jets provides a strong flow of water to soothe and massage your lower back muscles.

17
XL Directional Jet | HotSpring Spas
XL Directional Jet

Directional nozzle delivers maximum hydrotherapy performance to your lower back.

The Beam™ 4 Person Spa Pool | HotSpring Spas

Seating Capacity

4 adults

Dimensions

203 x 203 x 84 cm

Water Capacity

1,175 litres

Weight

320 kg dry

1750 kg filled weight*

Lighting System

Raio™ multi-colour interior points of light (30) Exterior multi-colour lighting with timer

Entertainment Systems

(Optional)

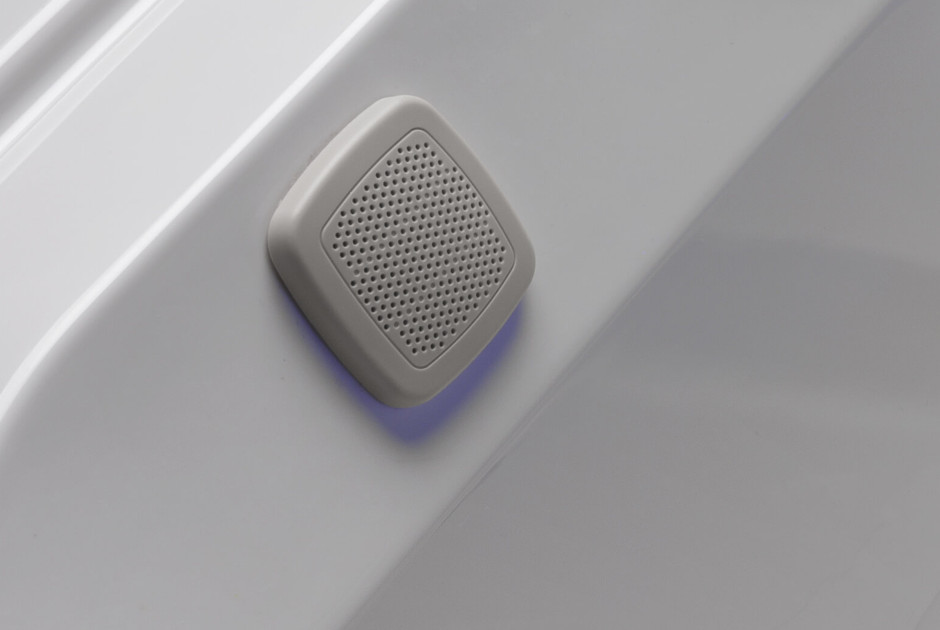

Wireless Sound Entertainment

22” HD Monitor

(Optional)

Jet Count

19

Hot Tub Jets

19

Water Features

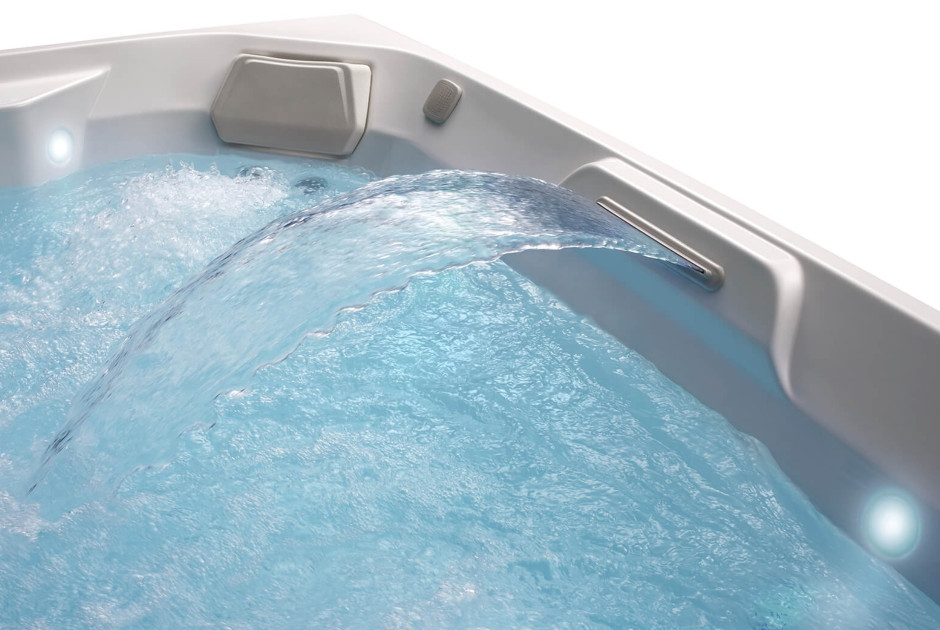

Vidro™ backlit ribbon waterfall

Control System

IQ 2020™ with LCD control panel 240v/10amp, 50Hz

Electrical

230v / 10amp / 50Hz
Other configurations**

Heater

No-Fault™ 1500w/240v

Jet Pump 1

Wavemaster™ 9000

2.5 HP continuous duty

5.2 HP breakdown torque

The Beam™ 4 Person Spa Pool | HotSpring Spas

Water Care Options

FreshWater™ Salt System ready for best spa water possible with less effort or FreshWater® CD High-Output Ozone  (choose one option only)

Effective Filtration Area

9.3 m2, top-loading filters

Vinyl Cover Colours

Caramel
Slate
Evergreen
Chestnut

Vinal Cover Options

9 to 6 cm tapered
32 kg/m³ density foam core

Cover Lifters (Optional)

CoverCradle™, CoverCradle II, Lift ‘n Glide™ or UpRite™ (Optional)

* Includes water and adults weighing 80kg each

** Depending on local electrical circumstances

Hot Spring Limelight Beam The Perfect Accessory For Your Backyard | HotSpring Spas

Hot Spring Limelight Beam The Perfect Accessory For Your Backyard

Accessories

FreshWater® Salt System | HotSpring Spas

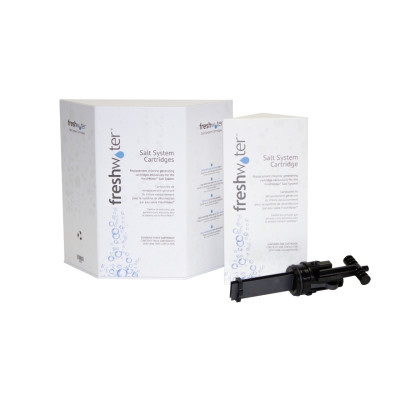

FreshWater® Salt System

Learn More

Entertainment Systems | HotSpring Spas

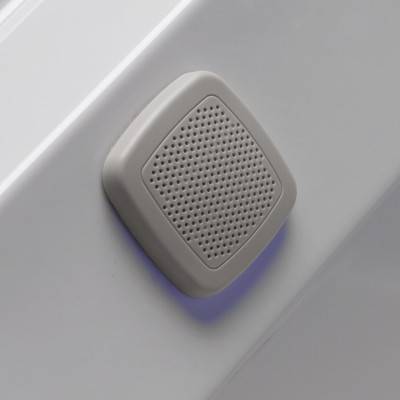

Entertainment Systems

Learn More

Side Enhancements | HotSpring Spas

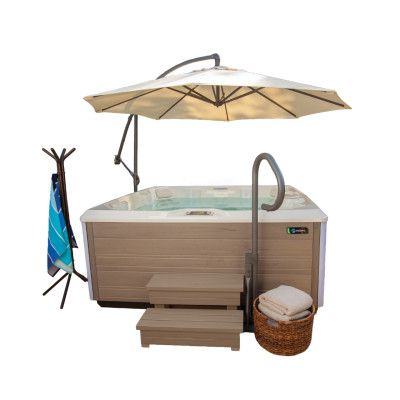

Side Enhancements

Learn More

Hot Spring Spa Steps | HotSpring Spas

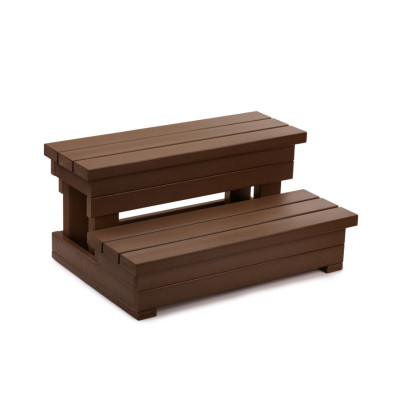

Hot Spring Spa Steps

Learn More

Spa Pool Cover Lifters | HotSpring Spas

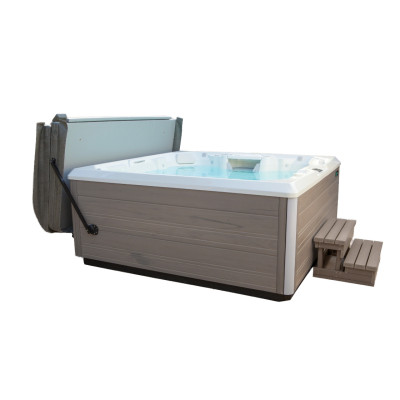

Spa Pool Cover Lifters
