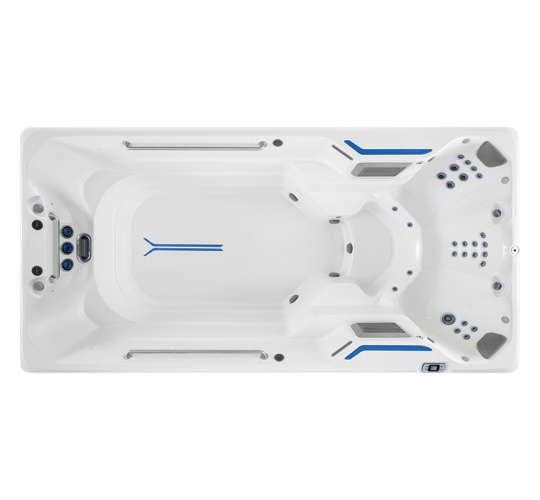

X500 Endless Pools Fitness System

X-Series

Seating

5 Adults

Dimensions

457 x 226 x 127 cm

X500 Endless Pools Fitness System | HotSpring Spas

Capacity

6,250 litres litres

The X500, our 4.6m SwimCross Exercise System, gives you all the fitness and fun of the X200, plus extra room to stretch out and luxuriate!

Featuring our all-new jetted swim current, it boasts 4 jets, 5 speeds, and minimal turbulence. When used with the swim tether, you get gentle resistance for low-impact, full-body exercise that delivers both fun and fitness.

For soothing aquatic therapy after every swim, or just after a long day, there are three distinct hydro-massage seats. Each ergonomically designed seat has a different jet configuration - for total-body relaxation you’ll want to experience them all!

Combining functionality with beauty, the X500 has a steel-framed cabinet with streamlined, modern styling. Furthermore, the durable, state-of-the-art materials used in construction are virtually maintenance-free.

With your choice of options, from a swim mirror for real-time technique feedback to an 8-speaker Bluetooth® music system, you can customise the X500 for your own specific requirements.

And with a generous swim and exercise area, along with easy entry and variable speed swim jet system, it takes backyard fitness to a whole new level. Now it’s easy to put fitness into your daily routine.

From

$188*

Per Week

*Subject to normal credit criteria. Find out more ›

Get a Quote

Make it your own

Cabinet Cabinet / Shell Combo

{{ this.active_cabinet.label }}

{{ cabinet_option.label }}
Shell

{{ this.active_shell.label }}

{{ shell_option.label }}
Asset 23

Superior swim-in-place
experience

Three Swim Jets and River Jet

With the SwimCross™ Exercise Systems, you can enjoy an authentic swim experience at an affordable price. Three round Swim Jets (on top) provide resistance, while the River Jet (below) provides lift. All jets use a boost effect to draw in more water, multiplying the volume. Using the two diverter valves, users can adjust the highly variable pace of the current for both swim and water workout options.

Sleek
Design

Stunning Exterior Cabinet

Stunning inside and out, the SwimCross™ Exercise Systems have a clean design that fits your lifestyle. Its beauty, versatility and advanced performance features make it a home enhancement you’ll enjoy for years. Our 18.5 cm cabinet panels feature a finely brushed embossed texture, creating a backdrop for the 3D double contour bands that surround the entire Exercise System. The band plays with light and shadow to create a visual depth and interest to the siding.

Bluetooth-Enabled Sound System (Optional)

For exercise or backyard enjoyment, nothing sets the mood like our optional, integrated 8-speaker system and subwoofer. It’s easy to set up: simply pair any Bluetooth-enabled device to the system through the control panel to listen to your favourite music anytime.

Asset 12

Built with solid
and durable frames

2 mm Steel Frame and ABS Base Pan

All Endless Pools SwimCross™ Exercise Systems feature a durable, two millimetre galvanised steel frame and ABS base pan, which together provide superior support and protection from ground contact. We’re concerned with your experience for the life of your Exercise System ownership. We look deeper, creating great design that you can see as well as great design that quietly adds significant value.

Asset 19

Hydromassage
spa seating

Spa Seating with Hydromassage Jets

After you exercise, enjoy a workout cool-down in the comfort of spa seating where hydromassage jets soothe your muscles. Perfectly positioned in two captain’s chairs with pillows, plus a third middle seat, four jet types are combined in three configurations to deliver an ideal post-workout relaxation experience.

5 Reasons to choose an Endless Pools® Swim Spa

System Warranty | HotSpring Spas

System Warranty

An Endless Pools Fitness System will provide you with many years of worry-free enjoyment. View full warranty specifications here.

Solid Build | HotSpring Spas

Solid Build

The strong, 2mm (14-Gauge) galvanised steel frame is a standard feature on all Endless Pools Fitness Systems

Made in the USA | HotSpring Spas

Made in the USA

All Endless Pools Fitness Systems and options meet the highest standards for safety, durability and quality.

Superior Swim Current | HotSpring Spas

Superior Swim Current

Endless Pools is the pioneer and industry leader in swim current generator for a vastly superior swim-in-place experience.

Energy Efficiency | HotSpring Spas

Energy Efficiency

Your Endless Pools Fitness System is California Energy Commission (CEC) and APSP 14 National Standards certified.

Product Specs

Dimensions

457 x 226 x 127

Water Capacity

6,250 litres

Weight

1,230 kg (Dry) / 8,280 kg (Filled*)
* Includes water and 10 adults weighing 80 kg each

Shell Colour Options

Alpine White or Grey Oak

Cabinet Colour Options

Dark Mocha or Grey Oak

Swim Technology

5 Swim Jets - Max 1,200 Litres Per Minutes

Swim Power

2.5 HP Continuous Duty; 5.2 HP Breakdown Torque - Dual Speed Pump

Hydromassage Seats

3 Seats

Hydromassage Jets

27 - 1 Large Jet, 2 Rotary Jets, 2 Directional Jets, 22 Mini Jets

Hydromassage Jet Pump

2.5 HP Continuous Duty; 5.2 HP Breakdown Torque - Dual Speed Pump

Control System

LCD Control Panel; 220 - 240v/1 x 24amp & 1 x 32amp, 50Hz

Water Feature

2 Illuminated Waterfalls

Water Management System

UVC + CD Ozone

Effective Filtration Area

9m2

Lighting System

Multi-Colour 15 LED Lights & 13 cm Main Light

Substructure

2 mm Galvanised Steel Frame

Base Pan

Thermoformed ABS Base Pan

Heater

3000 watt / No-Fault Heater

Energy Efficiency

Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law

Stainless Steel Grab Rails

3 Satin Stainless Steel Rails

Music Option

8 Speakers & Subwoofer, Bluetooth® Enabled

Exercise Equipment Options

Swim Tether and Rowing Kit

Vinyl Cover & Lifter Options

Watkins Bi-Fold Covers & Lifters or VacuSeal® Cover System

Additional Options

Floor Mirror, Gecko® In.Touch WiFi & Mobile App

Accessories

VacuSeal™ Lifting System | HotSpring Spas
VacuSeal™ Lifting System

The VacuSeal Lifting System features a unique design ensuring a tight seal between covers and easier operation by a single user. Not only does it prevent heat loss and evaporation, but optimises the efficiency of your spa. Its patented “Reverse Pneumatic Technology” applies downward pressure on the cover to vacuum seal the two covers together. This eliminates the centre gap commonly found with traditional covers.

Easy Slider Cover Mount | HotSpring Spas
Easy Slider Cover Mount

The Easy Slider Cover Mount helps to remove Bi-fold covers by simply attaching the 'arms' to the cabinet corners, allowing customers to remove the covers without the weight of the cover itself. It not only eliminates the need for traditional lifters but does not obstruct your view when covers are in the open position.

CoolZone® Cooling System | HotSpring Spas
CoolZone® Cooling System

CoolZone works with the Fitness System components to efficiently cool or maintain water temperature, making it ideal for all-year-round use. Ideal for extreme climate areas, it makes changing and retaining your ideal water temperature a convenient and simple process.

Watkins Cover Set and Lifter System | HotSpring Spas
Watkins Cover Set and Lifter System

The Watkins Cover Set helps maintain heat and reduce evaporation used both on its own and in conjunction with the lifter system. The Watkins Lifter System includes two lifters and spacer kit, enabling you to position the Watkins covers vertically.

Underwater Mirror | HotSpring Spas
Underwater Mirror

Refine your stroke and form with the optional 60 x 130cm stainless steel underwater mirror. Its even weight distribution ensures it stays in place on the floor of any Fitness System. Not recommended for installation with the underwater treadmill.

Row Bar Kit | HotSpring Spas
Row Bar Kit

Treat yourself to a low-impact, full body workout with the Row Bar Kit. Row bars and resistance gear can be attached to the built-in anchors and handrails to convert your spa to an underwater workout environment.

Swim Tether | HotSpring Spas
Swim Tether

The Swim Tether assists swimmers by providing additional assistance, vital for beginner swimmers or those looking to improve their swimming form.

Bluetooth®-Enabled Sound System | HotSpring Spas
Bluetooth®-Enabled Sound System

Listen to your favourite tunes in the privacy of your own spa with our Bluetooth®-enabled speakers. Simply pair your device to the integrated 8-speaker system through the handy control panel to set the mood for your spa - whether it be pumping tunes for your workout or a chilled, relaxed vibe for your swim.

Gecko® In.Touch Mobile & WiFi Kit | HotSpring Spas
Gecko® In.Touch Mobile & WiFi Kit

Be in complete control with the optional plug-and-play Gecko® In.Touch Mobile & WiFi Kit from your WiFi-enabled tablet or mobile device. The connected mobile app will allow full control of the Fitness System’s temperature, lights and jets.

Fit@Home™ Mobile & Wifi Kit | HotSpring Spas
Fit@Home™ Mobile & Wifi Kit

Never before has a spa swim session been so easy! The Endless Pools® Fit@Home™ App allows you to control your Fitness System's pace and duration of the swim current, underwater treadmill or both!  Available with any smart device with with Fit@Home™ compatibility.

Resistance Bands | HotSpring Spas
Resistance Bands

Take your underwater workout to the next level with our Resistance Bands. Attach the bands to built-in anchor points on your Endless Pools® Fitness System to add more resistance and strength training options to your workout. The set includes 3 pairs of colour-coded resistance bands suitable for al fitness levels (4.5, 7 and 9 kg), complete with comfort-grip handles.

SwimDek® Surface Kits | HotSpring Spas
SwimDek® Surface Kits

SwimDek® Surface Kits offer a nonabsorbent traction surface ideal for spa-side exercise and play in complete comfort. Designed to withstand outdoor aquatic environments whilst retaining its functionality and look over time. Floor and Step Kits sold separately.

Aqua Bike | HotSpring Spas
Aqua Bike

Give your lower body the ride of its life with our stationary aqua bike. Avoid the strain on your muscles and ligaments with this lightweight, yet effective workout addition. Ideal for low to medium intensity workouts, or position in front of the swim current for a more challenging ride.

Signature Steps | HotSpring Spas
Signature Steps

Step easily into your Fitness System with our lightweight yet sturdy signature steps, complete with dual handrails, drink holder and towel bar. With everything you need for your next aqua workout, it's an option you won’t want to pass up.
